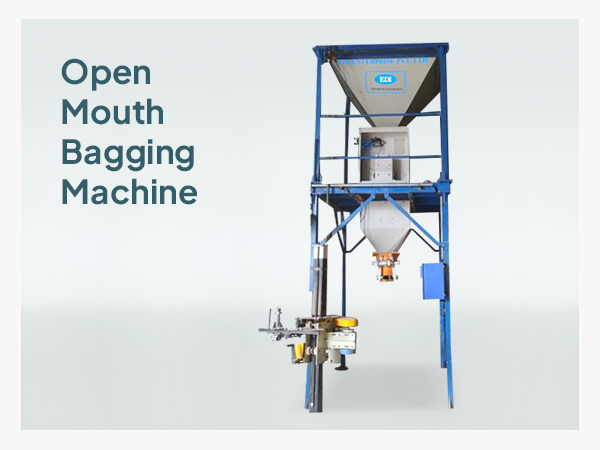

Open Mouth Bagging Machine

Open Mouth Bagging systems are designed for packing the materials into open mouth bags. Open Mouth Bagging Machine is precisely engineered under the firm direction of experienced Professionals. This system is easy to use, the operator has to place the empty bag on the mouth, machine clamps the bags at high pressure, so that gripping is steady. This system is quick, safe and compact, and can be configured to suit any kind of production plant, whether new or existing.

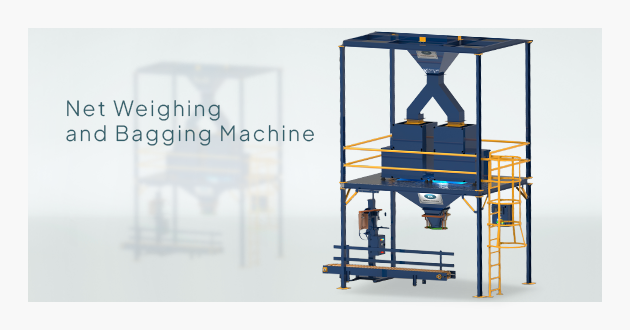

Net Weighing and Bagging Machine

In Net filling machine, material is pre-weighed in a weigh pan and filled into the bag. Load cell suspension system and 24 bits analog to digital conversion ensures speed and accuracy. Systems are available for single weigher or dual weigher for weights ranging from 5-100 kg per weighment.

01. EBM1518S Simplex Bagging Machine up to 600 Bags/Hour

Sr. No.	Parameters	Description
1	Type	Net Simplex Type
2	Bag Capacity	20-70 KG
3	Duty	600 Bags/Hour
4	Accuracy	+/- 20 gm/sigma
5	Feeding Arrangement	Gravity/screw/belt, etc
6	Filling Speed	Two Speed, Major and Dribble
7	Air Supply Pressure	6.0 Kg/cm2

1.2. EBM1518D Duplex Bagging Machine Up To 1200 Bags/Hours

Sr. No.	Parameters	Description
1	Type	Net Simplex Type
2	Bag Capacity	20-70 KG
3	Duty	1200 Bags/Hour
4	Accuracy	+/- 20 gm/sigma
5	Feeding Arrangement	Gravity/screw/belt, etc
6	Filling Speed	Two Speed, Major and Dribble
7	Air Supply Pressure	6.0 Kg/cm2

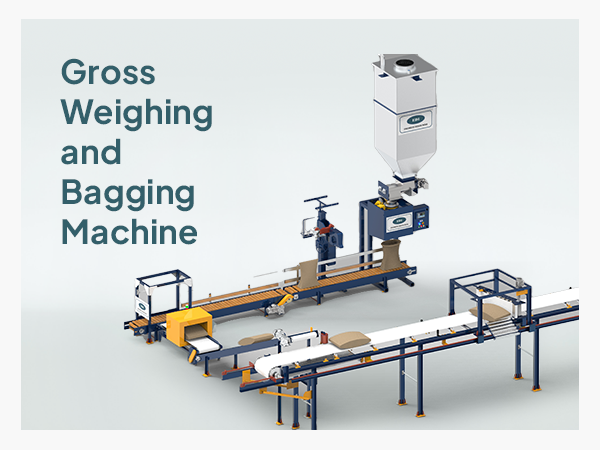

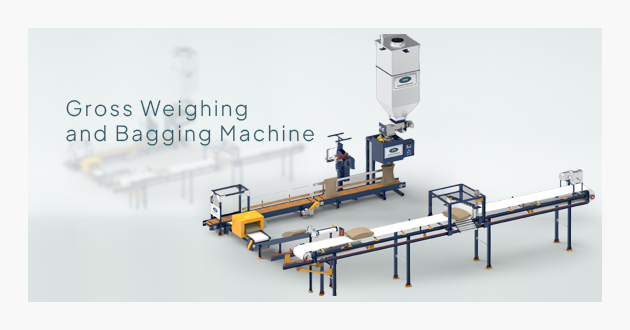

Gross Weighing and Bagging Machine

Gross weighing baggers are designed to fill Open mouth bags in which material is fed directly into the bags under Weighment. These machines are suitable for materials which are hygroscopic or sticky and can also be used for filling of Powders, granular materials and pellets like seeds, grains, sand, rock salt, fertilizers etc., where the height availability is less or production is also not beyond 4 bags per min. In this system material is directly fed and weighed in the bag.

1.3. EBM1518GW Bagging Machine up to 240 BPH

Sr. No.	Parameters	Description
1	Type	Gross
2	Bag Capacity	20-50 KG
3	Duty	240 Bags/Hour
4	Accuracy	+/- 20 gm/sigma
5	Feeding Arrangement	Gravity/screw/belt, etc
6	Filling Speed	Two Speed, Major and Dribble
7	Air Supply Pressure	6.0 Kg/cm2

02. Integrated Bagging Line

Increase your packaging rates, reduce your material costs, and cut your labor expenses with a custom-designed high-speed packaging line. The professionals at EDI will engineer a cost-effective packaging process that is perfectly suited for your products and your facility. We will determine and supply every packaging station from the point where your product enters your packaging area to the point where it's ready to be shipped.
