Gross weighing baggers are designed to fill Open mouth bags in which material is fed directly into the bags under Weighment. These machines are suitable for materials which are hygroscopic or sticky and can also be used for filling of Powders, granular materials and pellets like seeds, grains, sand, rock salt, fertilizers etc., where the height availability is less or production is also not beyond 4 bags per min. In this system material is directly fed and weighed in the bag.

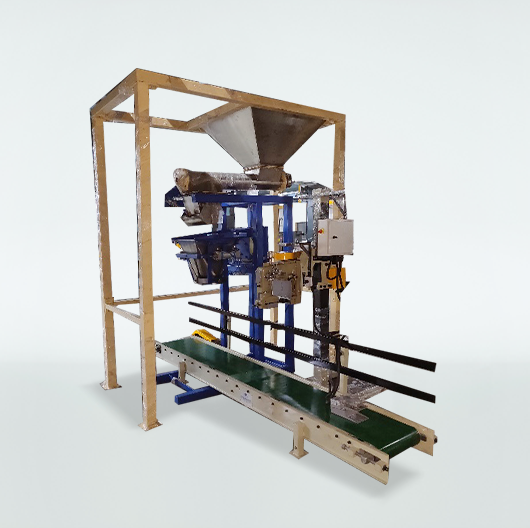

EBM1518GW Bagging Machine up to 240 BPH

Sr. No. Parameters Description
1 Type Gross
2 Bag Capacity 20-50 KG
3 Duty 240 Bags/Hour
4 Accuracy +/- 20 gm/sigma
5 Feeding Arrangement Gravity/screw/belt, etc
6 Filling Speed Two Speed, Major and Dribble
7 Air Supply Pressure 6.0 Kg/cm2
slider-shape slider-shape

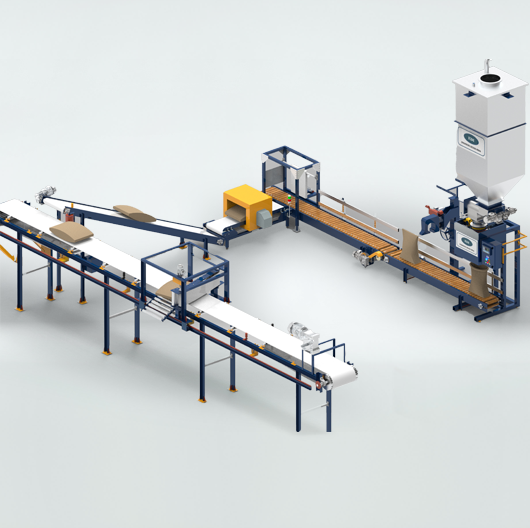

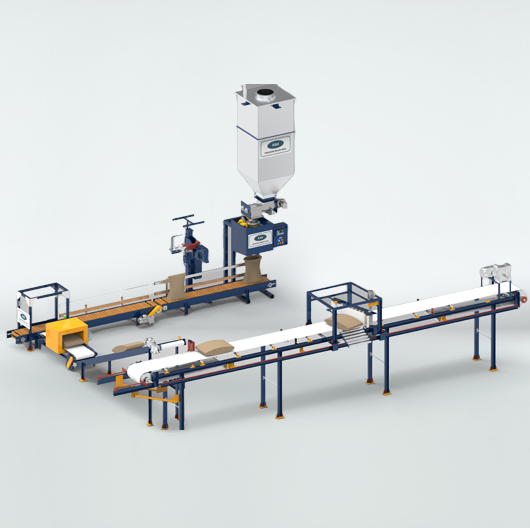

Integrated Bagging Line

Increase your packaging rates, reduce your material costs, and cut your labor expenses with a custom-designed high-speed packaging line. The professionals at EDI will engineer a cost-effective packaging process that is perfectly suited for your products and your facility. We will determine and supply every packaging station from the point where your product enters your packaging area to the point where it's ready to be shipped.
